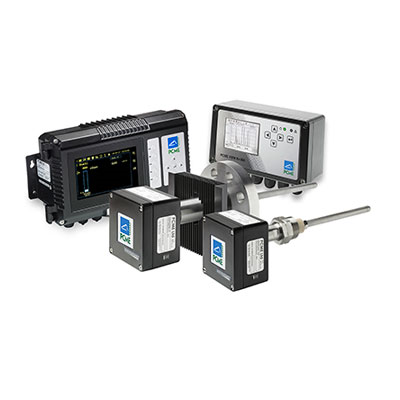

ELEKTRODYNAMISCHE STOF MONITOR VIEW 820
Gecertificeerde stofmonitor met meerdere sensoren – categorie 1 onder ATEX / IECEx – voor indicatieve emissietrends en metingen in gevaarlijke zones en in droge processen met verhoogde druk. Geavanceerde sonde-elektrificatie met gegevensregistratie op lange termijn voor analyse en rapportage van procestrends.
KENMERKEN & VOORDELEN
- Betrouwbare meting van lekkende en kapotte zakken in stofafscheiders
- Sensor op afstand geconfigureerd via controller
- Automatische sensor drift controles (nul en span)
- Automatische sondecontrole (Isolator Short-Circuit Check) voor verbeterde gegevensintegriteit
- Vermindert filteronderhoudsintervallen, procesonderbrekingen en filterkosten
BELANGRIJKSTE TOEPASSINGEN
- Stacks na zakkenfilters, patroonfilters, cyclonen
- Variabele snelheden binnen bereik 4-30 m/s (typische snelheidsbereiken voor zakfilters), constante snelheid vereist buiten dit bereik
- Hogedruktoepassingen
- Explosieve atmosfeerzones 0, 1, 2, 20, 21 en 22
Typical Applicaties:
- Mineralen (bijv. Kolenvergassing)
- Petrochemicaliën (bijv. Kunststofproductie)
- Vermogen (bijv. Biomas)
| TECHNICAL SPECIFICATIONS |
| Measured parameters |
Dust |
| Technology |
ElectroDynamic® Advanced Probe Electrification |
| Measurement/Monitoring capability |
0-500 mg/m³* |
| Stack/Duct diameter suitability |
up to 6m |
| Flue gas temperature |
up to 450°C |
| Baghouse |
YES |
| Cartridge Filter |
YES |
| Ceramic Filter |
YES |
| Coalescent Filter |
/ |
| Cyclone |
YES |
| Electrostatic Precipitator (ESP) |
/ |
| Wet Electrostatic Precipitator (WESP) |
/ |
| Wet Scrubber |
/ |
| Sensor variants |
Stainless Steel |
| QA checks |
N/A |
*Application dependant
| TECHNICAL DATA |
| Monitoring capability |
0-500 mg/m3 |
| Sensor Variants |
316 Stainless Steel (standard) |
| Stack Temperature Ranges |
0-400°C (450°C option) |
| Pressure Rating |
< 50Bar (0-400°C) <38 Bar (0-450°C) |
| On-board data logging |
User configurable Long term, Short term or Pulse logging |
| Outputs |
RS232, RS485 (Modbus), Ethernet Digital Alarm and 4/20mA (number of outputs dependant on controller type) |
GOEDKEURINGEN & CERTIFICERINGEN
- Ex Zone 0, 1, 2
- US EPA MACT Compliant BLD
